irrational-art — Interactive Diagrams of Irrational Numbers

Inspired by Nadieh Bremer's The Art in Pi, irrational-art renders digit sequences from π, e, φ, and √2 as colored, directed steps on an infinite plane. I extended the concept to support multiple constants, configurable digit counts, and a robust interaction layer with cursor-centric pan/zoom.

Highlights

• Multiple constants: switch between π, e, φ (golden ratio), and √2.
• Intuitive controls: click-drag to pan; mouse wheel to zoom where the cursor points.
• Deterministic mapping: each digit maps to a 36° direction and a stable color.
• Snappy redraws: re-render only on interaction or input change.

Screenshots

500 Digits of E

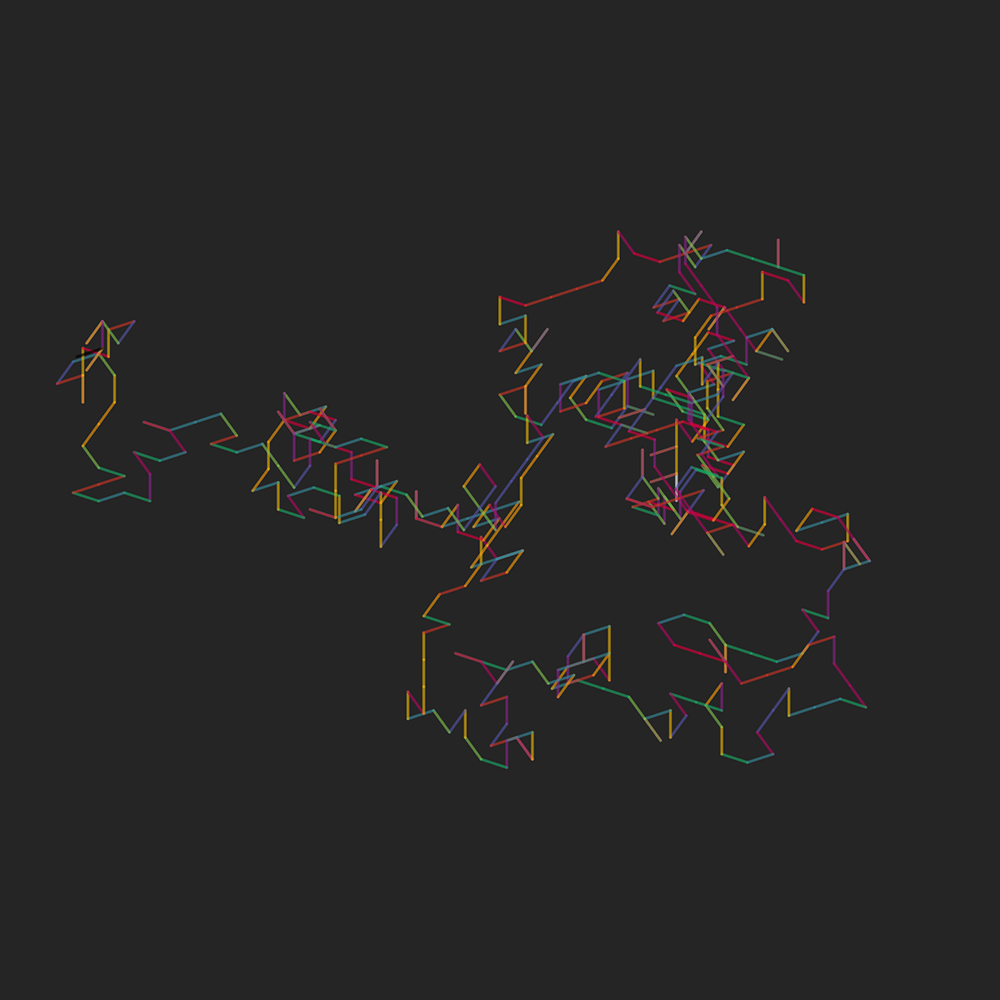

500 Digits of Phi

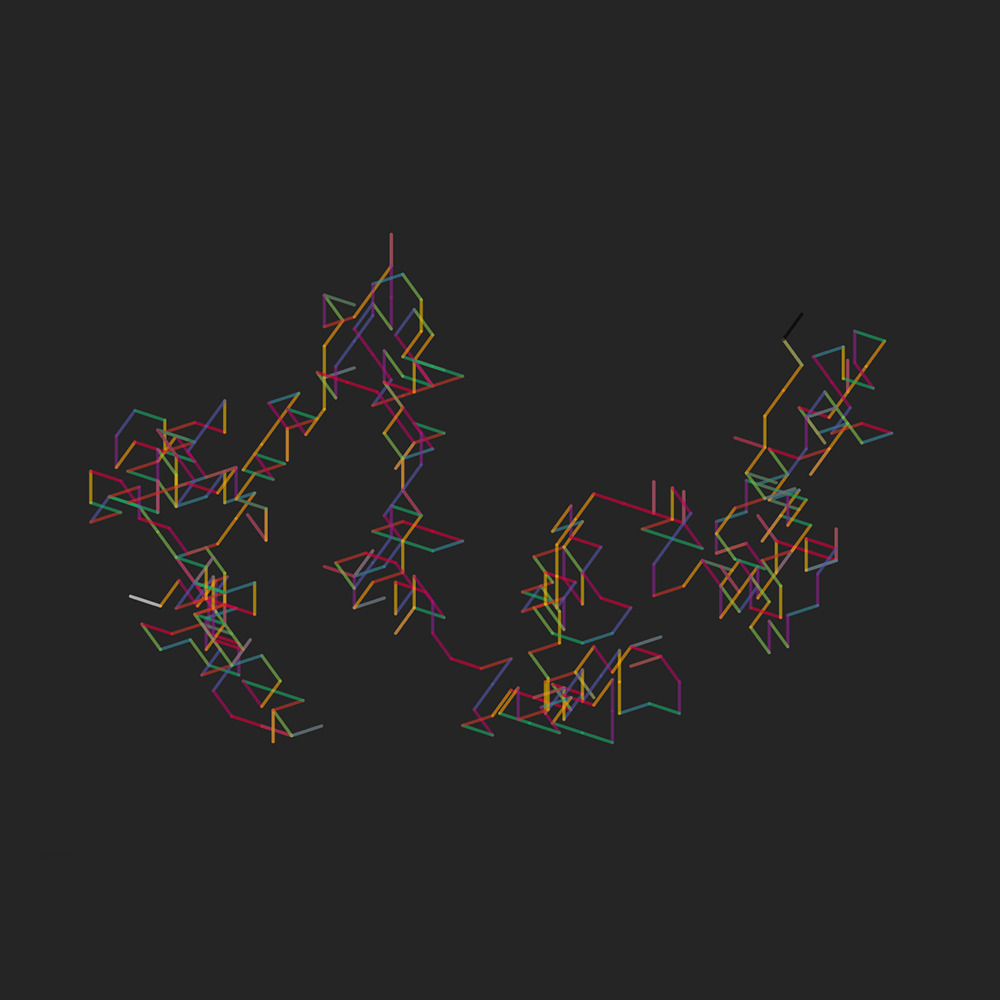

500 Digits of Pi

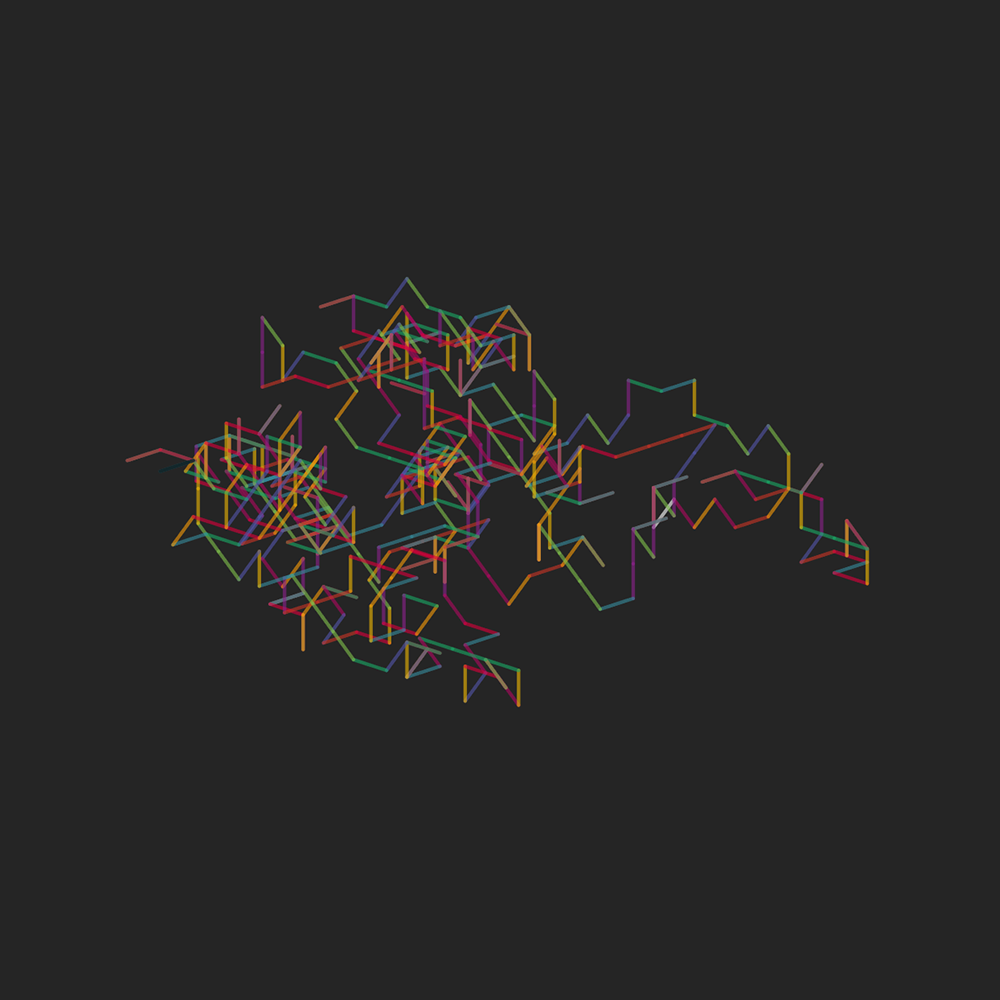

500 Digits of Root Two

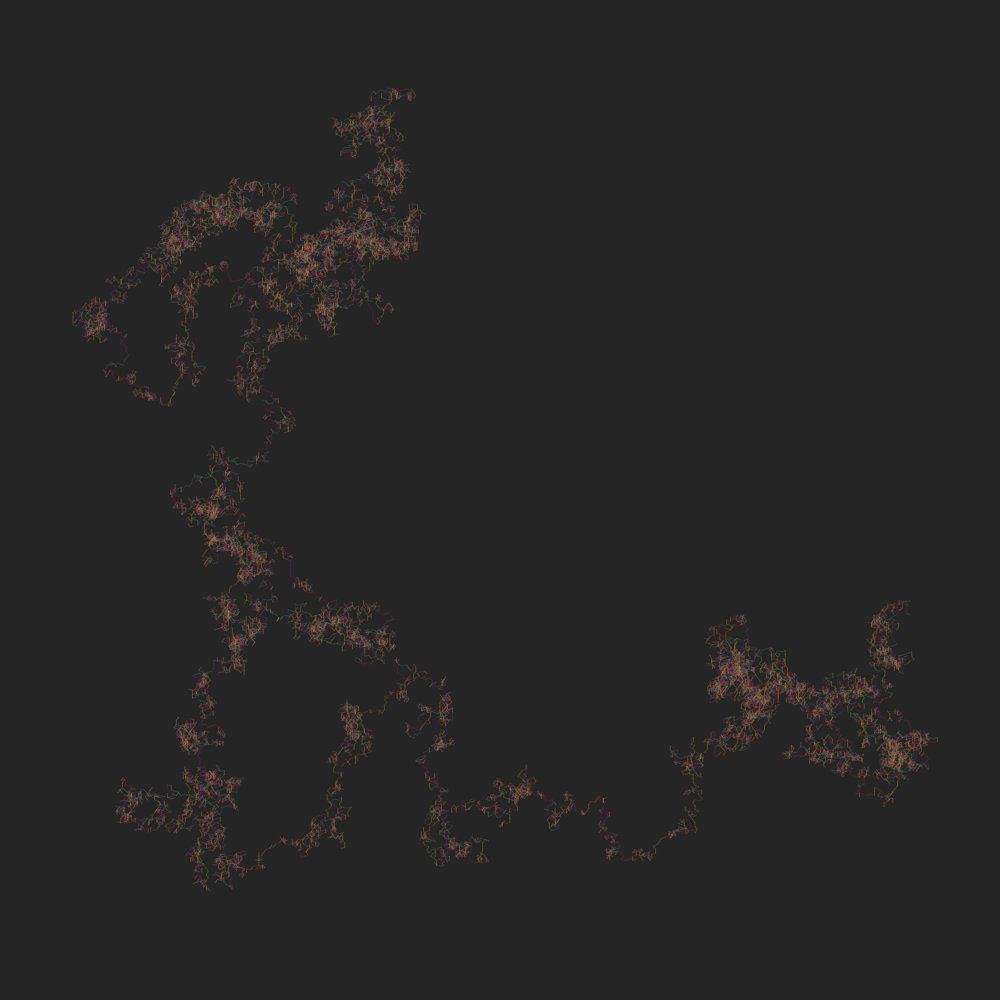

20,000 Digits of E

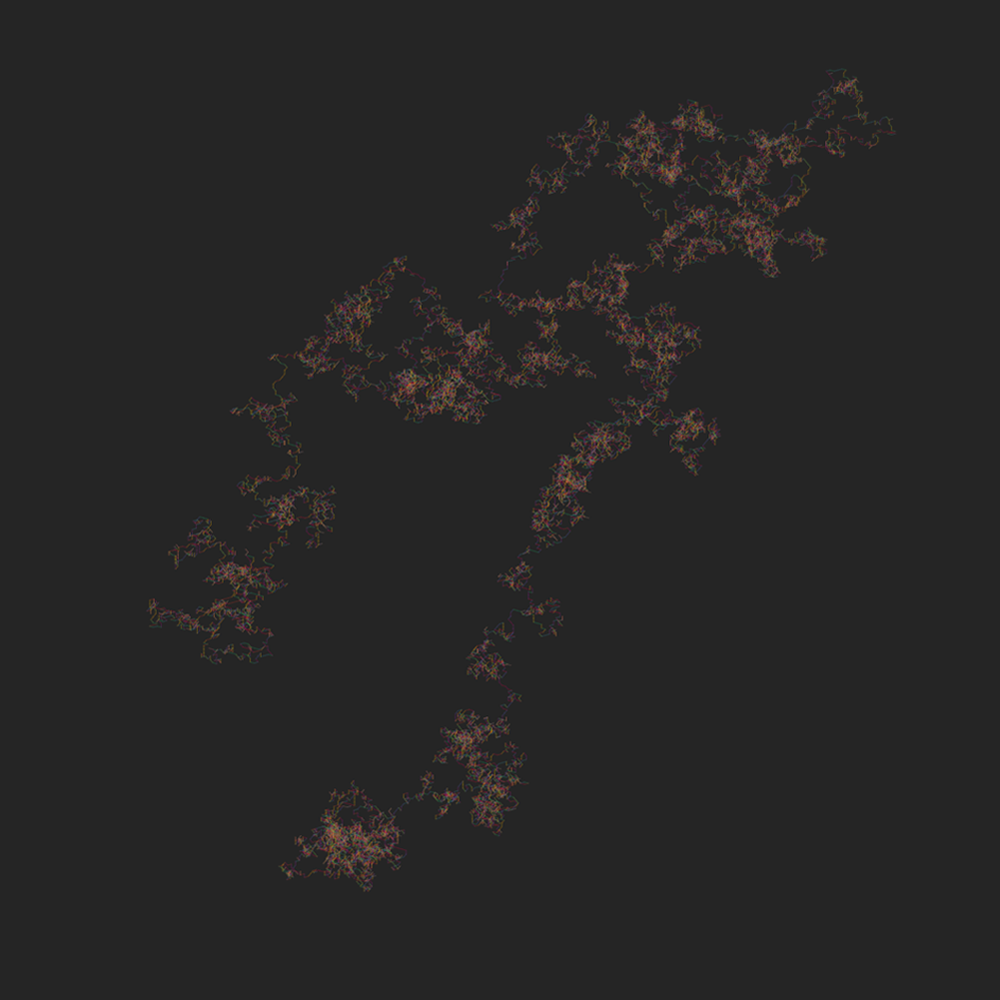

20,000 Digits of Phi

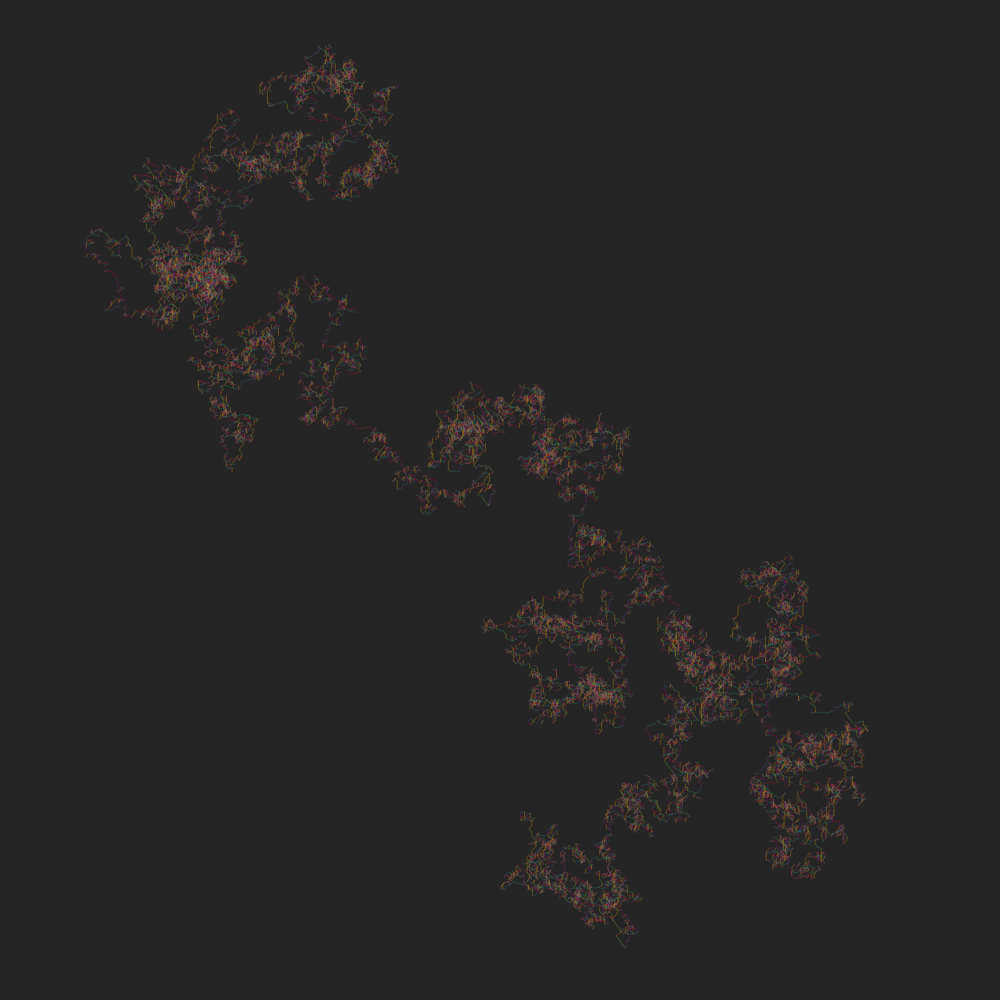

20,000 Digits of Pi

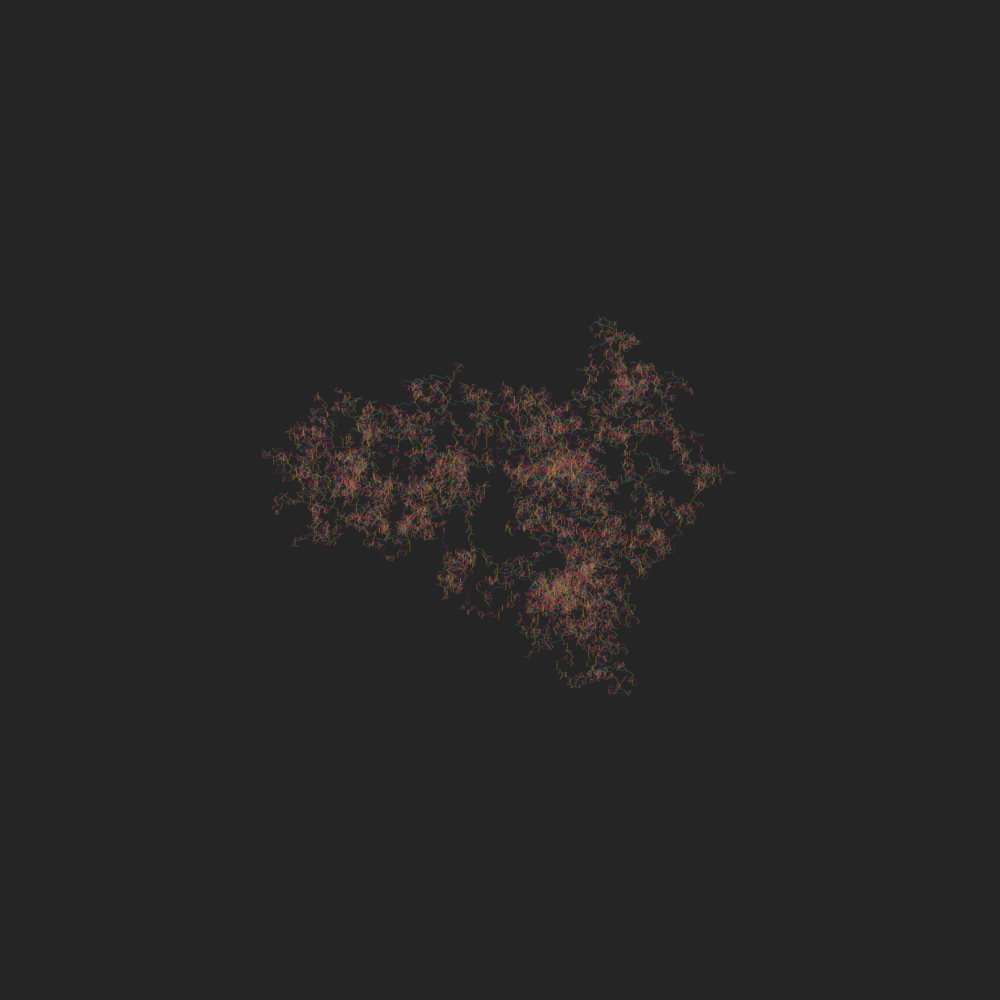

20,000 Digits of Root Two

How it works (short)

Digit → step. Each digit 0–9 selects a slice on the unit circle (digit * 36°). That slice becomes a small vector (dx, dy) and a color from a fixed palette. Chaining thousands of these vectors yields a path that "walks" the plane.

Rendering. The canvas iterates digits, accumulates positions, and strokes each segment with the digit's color. Inputs (constant, digit count, custom text) are normalized before draw.

The hard part: precise mouse interaction on a transformed canvas

HTML Canvas 2D doesn't give you a built-in inverse transform, so translating screen coordinates (mouse events) into world coordinates (after pan/zoom) is the tricky bit. I solved this by wrapping the 2D context and mirroring its transform with an SVGMatrix, then exposing a single helper method:

1// ctx.transformedPoint(x, y) → world-space point under the cursor
2const svg = document.createElementNS("http://www.w3.org/2000/svg", "svg");
3const pt = svg.createSVGPoint();
4let xform = svg.createSVGMatrix();
5
6// ...override save/restore/translate/scale/rotate/transform/setTransform
7// to keep xform in sync with the canvas context...
8
9ctx.transformedPoint = function (x, y) {
10  pt.x = x; pt.y = y;
11  return pt.matrixTransform(xform.inverse());
12};

With transformedPoint, pan and zoom become straightforward and feel correct at any scale:

1let lastX = 0, lastY = 0;
2let dragStart = null;
3
4// PAN: world-space delta between drag start and current cursor
5canvas.addEventListener('mousedown', (e) => {
6  lastX = e.offsetX; lastY = e.offsetY;
7  dragStart = ctx.transformedPoint(lastX, lastY);
8});
9canvas.addEventListener('mousemove', (e) => {
10  lastX = e.offsetX; lastY = e.offsetY;
11  if (!dragStart) return;
12  const p = ctx.transformedPoint(lastX, lastY);
13  ctx.translate(p.x - dragStart.x, p.y - dragStart.y);
14  redraw();
15});
16canvas.addEventListener('mouseup', () => { dragStart = null; });
17
18// ZOOM: anchor to the world point under the cursor
19const scaleFactor = 1.01;
20function zoom(clicks) {
21  const p = ctx.transformedPoint(lastX, lastY);
22  ctx.translate(p.x, p.y);
23  const factor = Math.pow(scaleFactor, clicks);
24  ctx.scale(factor, factor);
25  ctx.translate(-p.x, -p.y);
26  redraw();
27}
28canvas.addEventListener('wheel', (e) => {
29  lastX = e.offsetX; lastY = e.offsetY;
30  zoom(-e.deltaY / 40);
31  e.preventDefault();
32}, { passive: false });

Why this matters:

• Cursor-anchored zoom keeps the point you're examining fixed beneath the mouse, avoiding the "zoom drifts away" problem.
• World-space pan makes dragging feel consistent regardless of zoom level.
• Overriding transform methods ensures the mirror matrix and the canvas stay perfectly in sync.

Performance notes

• Redraw on demand (interaction/input changes only).
• Clamp zoom (zMin/zMax) to prevent runaway scales.
• Thin strokes + light global alpha add depth without heavy blending.
• Future work: chunked/progressive rendering for very large digit counts, HiDPI scaling via devicePixelRatio, optional OffscreenCanvas.

Controls

• Pan: click-drag
• Zoom: mouse wheel (cursor-centric)
• Switch constant / digits: UI controls (π, e, φ, √2; 500 → 20k+)
• Reset view: select a new constant or reload

Credits

Concept inspired by Nadieh Bremer's The Art in Pi.
